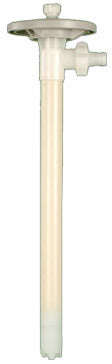

Standard Pump PVDF Pump Tube 27 to 72 in.
Roll over image to zoom in Click on image to zoom
Standard Pump PVDF Pump Tube 27 to 72 in.

PVDF Pump Tubes

StandardSKU: SP-PVDF-27
Grid List
27 in. PVDF Pump Tube - High Volume
Style:
Price:
$873.43
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
27 in. PVDF Pump Tube - High Volume
SP-PVDF-27
$873.43
39 in. PVDF Pump Tube - High Volume
SP-PVDF-39
$1,001.62
47 in. PVDF Pump Tube - High Volume
SP-PVDF-47
$1,037.02
50 in. PVDF Pump Tube - High Volume
SP-PVDF-50
$1,062.86
60 in. PVDF Pump Tube - High Volume
SP-PVDF-60
$1,216.87
72 in. PVDF Pump Tube - High Volume
SP-PVDF-72
$1,365.16
27 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-27
$888.74
39 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-39
$1,016.93
47 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-47
$1,049.46
50 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-50
$1,075.29
60 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-60
$1,231.23
72 in. PVDF Pump Tube - High Pressure
SP-PVDF-HH-72
$1,378.55

Product has been added to your cart

Please input the Quantity!

Description

"STANDARD's PVDF pump tube is engineered for transferring highly concentrated and aggressive liquids. Robust PVDF offers excellent durability and chemical resistance.

Applications

  • Concentrated Nitric Acid
  • Sulfuric Acid-66 Baume
  • Sodium Hypoclorite
  • Hydrofluoric Acid
  • Propionic Acid
  • Stearic Acid
Available Options: 3/4" (19 mm) Hose Barb, 1-1/4" BSP thread
Wetted Parts: PVDF, PTFE, PVDF, Carbon, Hastelloy C-276
Motor Drives: SP-280P Series (ODP, IP44),
SP-ENC Series (TEFC, IP54), SP-A1, SP-A2
Maximum Viscosity:
SP-280P & SP-ENC 1500 cps (mPas)
SP-A2 750 cps (mPas)
SP-A1 450 cps (mPas)
Maximum Specific Gravity: 1.8*
Maximum Temperature: 175 degrees F (80 degrees C)
