Description

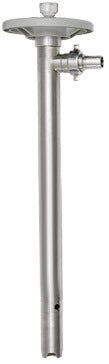

"STANDARD's Aluminum pump tube is engineered for transferring Non-Corrosive liquids such as Machining Lubricants and Light Oils. Robust Aluminum construction offers excellent strength and durability.
Applications
- Motor Oil (Up to 30 Wt)
- Light Machining Oils
- Anti-Freeze
- Hydraulic Fluid
- Lubricating Oils
| Available Options: | 3/4" (19 mm) Hose Barb, 1-1/4" BSP thread | |
| Wetted Parts: | Aluminum, Carbon, PTFE, SS316 | |
| Motor Drives: | SP-280P Series (ODP, IP44), | |
| SP-ENC Series (TEFC, IP54), SP-A1, SP-A2, SP-400 Series (EXP, AtEx) | ||
| Maximum Viscosity: | ||
| SP-280P & SP-ENC | 1500 cps (mPas) | |
| SP-A2 & SP-420EX | 750 cps (mPas) | |
| SP-A1 | 450 cps (mPas) | |
| SP-410EX | 200 cps (mPas) | |
| Maximum Specific Gravity: | 1.8* | |
| Maximum Temperature: | 175 degrees F (80 degrees C) |
Downloads
None available
