Description

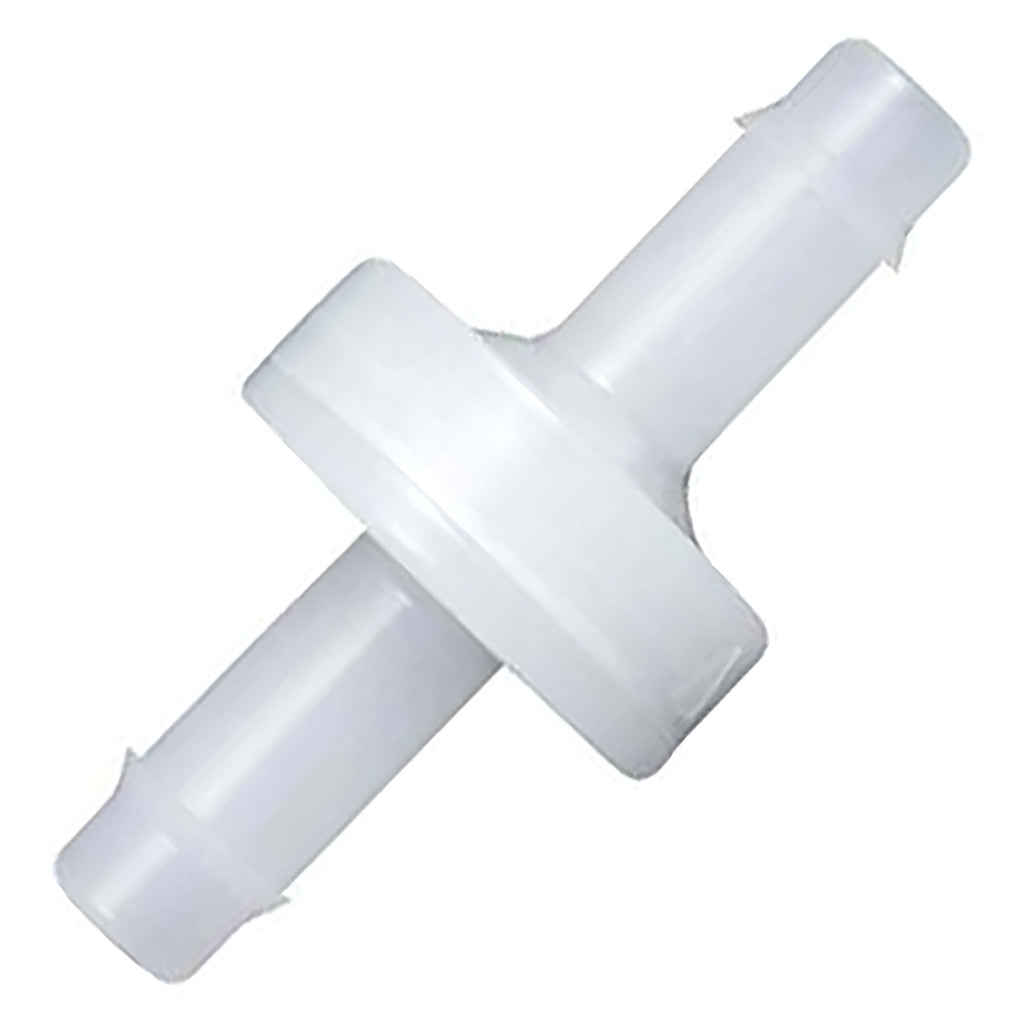

The MPC series tubing valves utilize a flexible elastomer diaphragm. Back pressure forces the diaphragm against a seat thus closing the orifice. Inlet pressure moves the diaphragm against a downstream side support completely opening the orifice. The support prevents damage to the diaphragm under high flow conditions. The inlet flow keeps the diaphragm and valve seat clean and free of particles which could cause leakage in the closed position.
Features:
- Materials Of Construction: Polypro body with FKM diaphragm for corrosive or ultra-pure applications.
- Superior Sensitivity: Free-floating diaphragm responds to slightest pressure change.
- Very Rapid Response: Between free-flow and no-flow situations.
- Extremely Low Cost: Designed to perform at high industry standards but very economically priced.
- Application Flexibility: Can mount in any position.
- Reliable Performance: With liquids, gases, pressure and vacuum applications.
